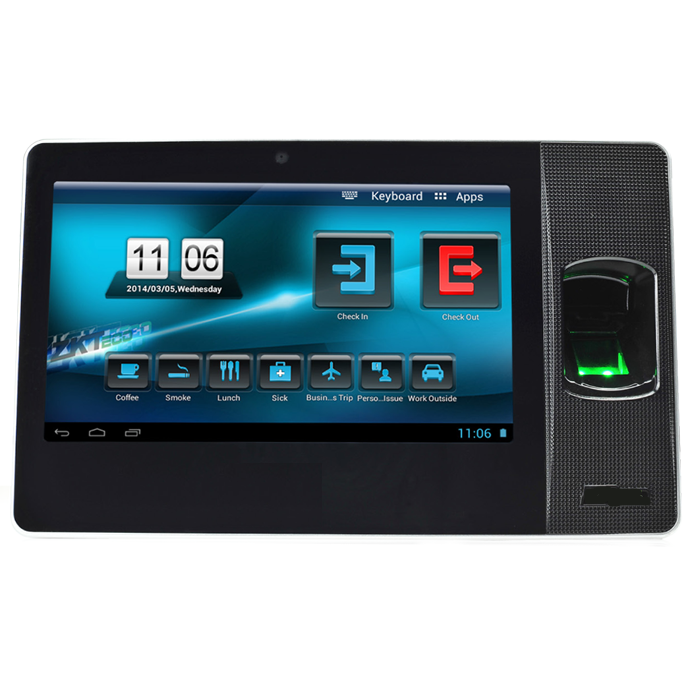

Biopad is a powerful, flexible time management terminal using the Android 4.1 operating system and including an integrated fingerprint reader. The BioPad ships with a standard time and attendance application, but an SDK can be provided allowing design and installation of custom applications. Based on a dual core 1.2GHz processor, the platform allows for future updating as new capabilities are required. Communication interfaces such as Ethernet, USB Host, USB Client and Wi-Fi allow for versatile connectivity virtually anywhere.
| Capacity |
| |
Template:
Max. Users:
Fingerprint Log:
Recorded Images:
Verification Modes: |
6,000 (1:N)
10,000 transactions
200,000
8,000
PWD / PIN / FP / RF |
| |
Display |
|
|
800 x 480 Pixel, LCD Capacitive Touch Screen
|
| |
Camera |
|
|
|
2.0 MP |
|
Fingerprint Sensor
|
|
|
|
ZK Optical Sensor
|
| |
Core Board |
| |
CPU:
Operating System:
RAM:
Flash Memory:
|
1.2 GHz Dual Core
Android 4.1
1 GB
4 GB; SD card slot
|
| |
Communication |
| |
Data:
Sound:
|
Ethernet, Wi-Fi, USB Host and Client Optional: ID / MF
Female / Male Voice & Sound Indication |
| |
Power |
| |
Power Supply: |
12V DC, 3A |
| |
Environment |
| |
Operating Temperature:
Humidity: |
32° F to 113° F ( 0° C to 45° C)
20% to 80% |
| |
Supported Options |
| |
|
125 KHz Prox, 13.56 MHz Mifare |
| |
Dimensions |
| |
Width:
Hight:
Depth:
Weight:
|
8.7 in.(22 cm)
5.3 in.(13.4 cm)
2.0 in.(5.1 cm)
1.43 lbs. (650 g) |
